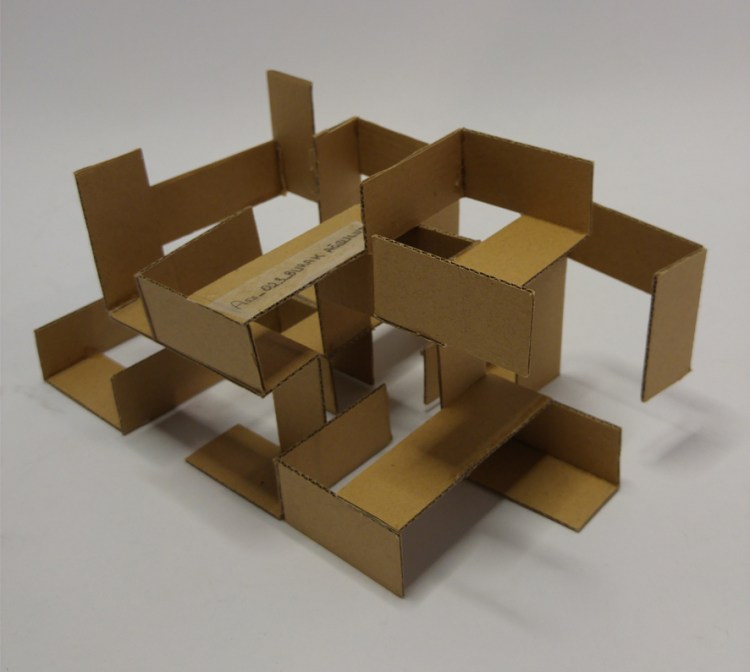

After 2.2 assigmnt, I crated this model. Streching size of one element from these units is asked to us. It created new relations also streching one element of unit made the model more comlex.
Then, I started to draw an ortographic set of this model. While I was drawing the set, I took care of line quality, line thickness and relations of units.

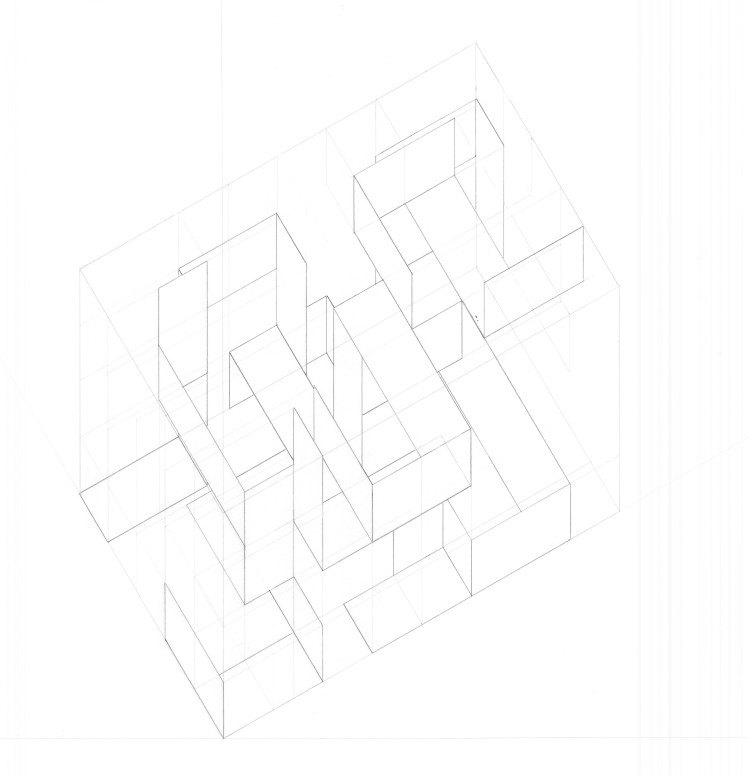

Then, I started to draw axonometric of this model. Before I started axonometric drawing, I draw top wiev of this model.It helped me as reference lines while I was drawing this model.
Burak Ağbulut
